Investigating the Electrical Burning Smell When Your Air Conditioner Kicks On

Are You Investigating an Electrical Burning Smell When Your Air Conditioner Kicks On?

Is your heart racing because a harsh, toxic scent just filled your living room? When our team at Allegiance Heating & Air receives panicked calls from Greenville homeowners investigating the electrical burning smell when your air conditioner kicks on, we know they are dealing with a serious and immediate safety hazard. While a brief dusty odor is common when turning on a furnace for the first time in the winter, smelling burning plastic or ozone during the cooling season means active electrical distress is happening inside your system.

The critical decision point right now is simple: you must shut the system down immediately to prevent fire hazards or catastrophic component failure. The two primary culprits behind this alarming odor that our technicians typically see are failing air handler electrical contactors and blower motors. Because these components handle high-voltage electricity, attempting to open the cabinet yourself is incredibly dangerous. Instead, you need to rely on professional HVAC services to safely diagnose the root cause. Whether the solution requires a minor part replacement or a more extensive air conditioning repair, cutting the power and calling an expert is the only way to protect your home and your family.

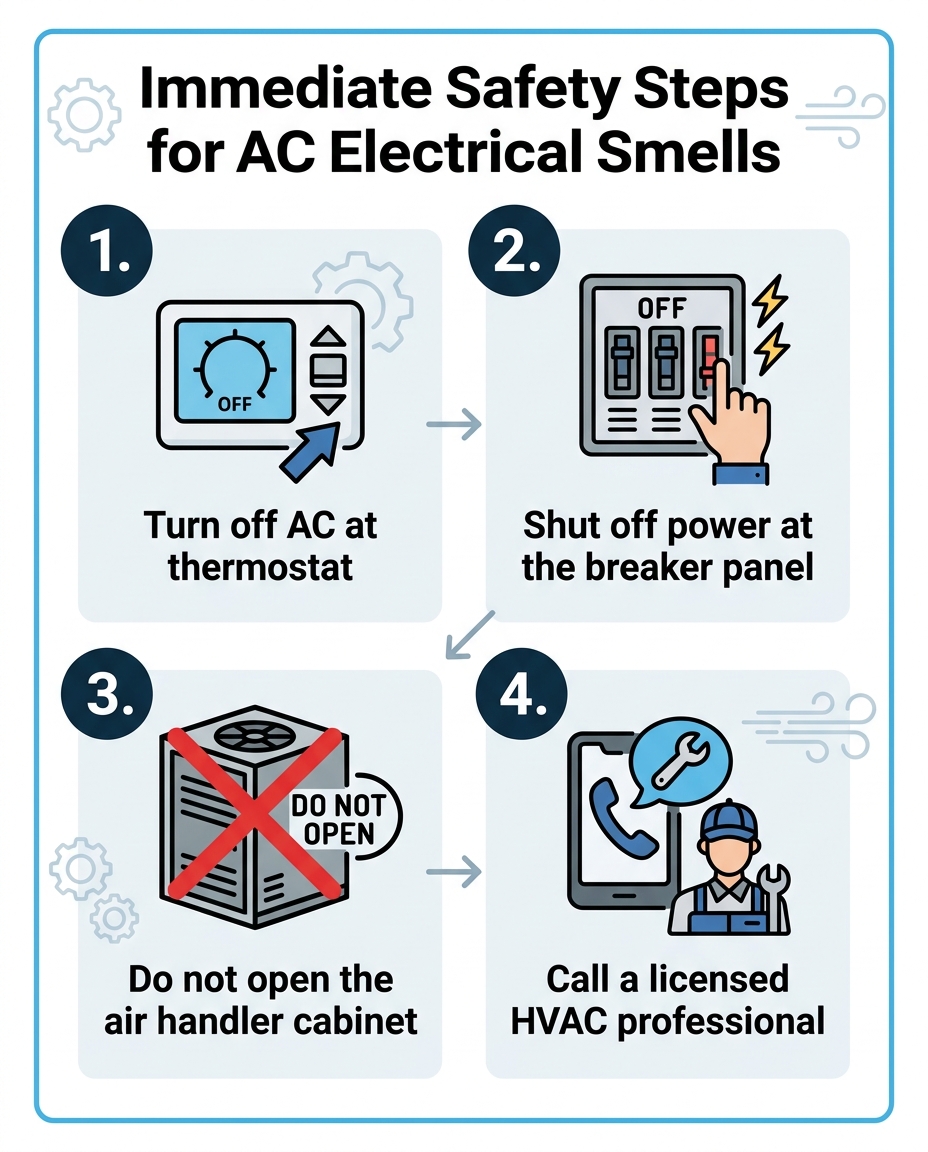

Immediate Safety Protocol: What to Do When You Detect an Electrical Odor

When an electrical or plastic burning smell travels through your vents, every second counts. The longer the system runs, the higher the risk of an electrical fire or irreversible damage to expensive internal parts. We recommend taking these immediate steps to secure your home.

1. Turn off the air conditioner at the thermostat: Stop the current cooling cycle immediately. Switch your thermostat from "Cool" to "Off." This sends a signal to stop calling for power, but it does not completely sever the electrical connection to the outdoor unit or the indoor air handler.

2. Shut off power at the breaker panel: Locate your home's main electrical panel and find the dedicated breakers for your HVAC system. There are usually two: one for the indoor air handler and one for the outdoor compressor. Switch both to the "Off" position to completely sever the high-voltage electrical current.

3. Do not touch the air handler cabinet: Step away from the indoor unit. Live wires, overheating metal, and melting plastics pose severe shock and burn hazards. Even with the breaker off, certain components can store lethal amounts of energy.

4. Assess the surrounding area for visible smoke: Look closely around the vents and the indoor unit. If you see active smoke, or if the burning smell continues to intensify after the power is cut, evacuate the home immediately and contact emergency services.

5. Call a licensed HVAC professional: Once the system is safely powered down and there is no active fire threat, contact our emergency technicians. Do not attempt to turn the system back on to "test" it.

Ozone vs. Burning Plastic: Decoding the Specific Odor

Not all electrical smells are identical. The specific scent wafting out of your ductwork provides critical clues to our technicians about what is failing inside the cabinet. By paying attention to the exact nature of the odor, you can help your HVAC professional narrow down the problem before we even open the access panel to inspect the air handler electrical contactors and blower motors.

The Scent of Electrical Arcing

If the odor reminds you of a lightning storm, sparking electronics, or a metallic tang, you are likely smelling ozone. Ozone is a gas produced when high-voltage electricity jumps a gap where it shouldn't—a process known as electrical arcing. In our experience, this sharp, distinct smell almost always points to failing motor windings or a severely degraded capacitor. As the insulation inside the motor breaks down, the electrical current arcs across the bare copper, producing ozone gas that gets pushed directly into your living space by the fan.

The Scent of Melting Insulation

If the odor is heavy, toxic, and smells like burning plastic, burning rubber, or even slightly fishy, you are dealing with melting insulation. This indicates that the protective coating on wires, or the plastic casing surrounding electrical components, has reached its melting point. This is often associated with heavy thermal strain, where a component is drawing far more amperage than it was designed to handle. The resulting heat literally cooks the surrounding plastics, releasing toxic fumes into your ductwork. Both ozone and plastic odors require the exact same immediate response: system shutdown.

How Late-Summer Humidity Triggers Electrical Component Fatigue

Electrical failures rarely happen out of nowhere. They are usually the result of cumulative fatigue over months of continuous operation. In regions like our service area here in Southern Indiana, prolonged high-humidity periods require AC units to run up to two to three times longer per cycle just to effectively dehumidify the indoor air. This relentless workload places immense thermal strain on every electrical component in the system.

As the season wears on, these extended cycles prevent components from properly cooling down between runs. The constant heat degrades wire insulation, weakens capacitors, and stresses motor windings. This is why August late-summer end-of-season cooling wear is a primary trigger for catastrophic electrical failures. By the time kids are heading back to school, the parts have simply endured too much heat and friction over the preceding months without a break.

Our Allegiance Heating & Air team recently helped a Greenville family who lost their AC during the hottest week of August due to this exact type of cumulative strain. After smelling an electrical odor and shutting the system down, our technician promptly arrived, diagnosed the burnt-out components, and took care of replacing the old system with a new one to safely restore cooling during the heatwave.

To prevent this level of seasonal fatigue, keeping your system optimized is crucial. Enrolling in our preventative maintenance plan ensures that a technician checks the amperage draw on your motors and inspects your wiring before the peak heat hits, catching early signs of electrical resistance before they turn into melting plastic.

Failing Blower Motors: The Source of the 'Ozone' Warning Sign

The indoor blower motor is the heart of your home's air circulation. Its job is to pull warm air from your rooms, push it over the freezing cold evaporator coil, and distribute the newly conditioned air back through your vents. When this motor begins to fail, it frequently produces the sharp ozone smell discussed earlier.

Blower motors are highly susceptible to August late-summer end-of-season cooling wear. Months of continuous operation, especially if the motor is fighting against a dirty or restrictive air filter, force it to draw excessive electrical current to maintain speed. This overworking generates intense internal heat. Over time, this heat bakes the thin layer of varnish protecting the copper windings inside the motor.

Once that protective varnish degrades, the raw copper wires touch, causing high-voltage electrical arcing. This arcing creates the ozone smell. If the motor is not replaced immediately, the arcing will eventually sever the windings entirely, causing the motor to seize up, overheat violently, and potentially trip your breaker or start a fire. For a deeper understanding of how these parts work together, you can review our comprehensive air conditioning guide.

Melting Electrical Contactors: Why Your AC Smells Like Burning Plastic

If your home is filling with the smell of burning plastic or fish, a pattern we see often is a failing electrical contactor. The contactor is a heavy-duty mechanical switch located inside the unit. When your thermostat calls for cooling, it sends a low-voltage signal to the contactor, pulling a magnetic coil closed. This snaps the heavy metal contacts together, allowing high-voltage electricity to flow to the compressor and the motors.

Over a long, hot summer, those metal contacts open and close thousands of times. Every time they snap together and pull apart under high voltage, a tiny electrical arc occurs. This arcing slowly pits and burns the metal surfaces. Eventually, the contacts become so pitted and covered in carbon buildup that they can no longer close cleanly. This creates severe electrical resistance. Just like a toaster element, electrical resistance generates extreme heat.

This localized heat becomes so intense that it begins to melt the contactor's plastic casing and the insulation on the wires connected to it, producing a highly toxic plastic odor. Having a NATE-certified technician from Allegiance Heating & Air isolate and replace defective electrical parts is vital; our rigorous training ensures the system is restored safely without risking further electrical damage or installing the wrong amperage part.

The Danger of Pitted Contacts

Pitted contacts that fail to close cleanly cause continuous electrical arcing while the system runs. This is one of the primary causes of HVAC-related fire hazards if left unaddressed. Recently, our team responded to a call where a local customer experienced severe AC trouble when their system began emitting a burning odor. Our technician isolated the issue, showed the homeowner the defective, melted contactor, and replaced it on the spot so the AC was up and running in a timely manner across our Southern Indiana service area.

The Extreme Danger of DIY Electrical Diagnostics

When you smell burning plastic, the temptation to grab a flashlight and open the air handler cabinet to see what is wrong can be strong. We strongly advise you to resist this urge. HVAC systems utilize high-voltage electricity that can be lethal. The air handler electrical contactors and blower motors operate on 240 volts, which is more than enough to cause severe injury or death.

Even if you have successfully turned off the breaker at the main panel, the danger is not gone. Capacitors inside the HVAC system act like large electrical storage tanks. They can hold a lethal electrical charge for hours or even days after the power has been disconnected. Touching the wrong terminal while looking for a melted wire can result in a massive electrical shock.

Furthermore, opening the cabinet exposes you directly to melting, toxic plastics and potentially live, frayed wires. Diagnosing electrical resistance, checking motor winding degradation, and testing contactor voltage requires specialized multimeters and professional safety training. There is no safe DIY diagnostic for an electrical burning smell. Your only job is to cut the power and call Allegiance Heating & Air for professional backup.

Frequently Asked Questions About AC Electrical Smells

Why does my AC smell like burning plastic?

A burning plastic smell usually indicates melting wire insulation or an overheating electrical contactor casing. As parts wear down and electrical resistance increases, extreme heat is generated, which cooks the surrounding plastic components. Our technicians treat this as a serious fire hazard that requires immediate professional attention.

Is it safe to run the AC if it smells like burning?

Absolutely not. Running the system risks an electrical fire and guarantees further damage to expensive components. If you smell burning plastic or ozone, you must turn the system off at the thermostat and shut down the dedicated HVAC breaker at your electrical panel immediately.

What does a burnt AC motor smell like?

A failing motor typically produces a sharp, metallic "ozone" smell due to electrical arcing within the degraded copper windings. This smell is often compared to the scent of a lightning storm or sparking electronics, and it means the motor is in the final stages of failure before seizing completely.

Can a bad AC contactor cause a burning smell?

Yes. When a contactor wears out, it generates high electrical resistance and heat, which melts its plastic housing and produces a strong burning odor. The metal contacts become pitted over time, preventing a clean connection and causing the high-voltage current to arc and overheat.

Is a burning smell from the AC an emergency?

Yes, we consider any electrical or plastic burning smell from an HVAC system to be an emergency requiring immediate system shutdown and professional inspection. Continuing to run the system can lead to catastrophic component failure, melted wiring, or an electrical fire in your home.

Secure Your Home and Restore Your Cooling Safely

Detecting an electrical burning smell from your vents is an alarming experience, but knowing exactly how to react keeps your home safe. By immediately shutting off the power at the thermostat and the breaker, you stop the electrical arcing and prevent melting components from turning into a fire hazard. Whether the issue stems from an overworked motor suffering from August late-summer end-of-season cooling wear or a pitted contactor melting its casing, the solution requires specialized tools and high-voltage training.

A professional diagnostic from Allegiance Heating & Air will safely pinpoint the exact source of the odor, ensuring that all damaged wiring and burnt components are fully replaced. Don't take chances with your home's electrical safety or your family's comfort as the back-to-school season begins. Schedule a professional inspection with our team today to resolve the burning smell, replace the failing parts, and restore safe, reliable cooling to your home.
